Produced Water Chemical Optimisation for Stable Separation Performance

Mark Cullens

Sep 23

4 min read

Direct answer
Map every chemical to its process purpose
Understand interactions across the treatment train
Build a trustworthy performance baseline
Use laboratory and controlled field testing
Correct dosing hardware and injection practice
Optimise against technical and commercial KPIs
Create a sustainable chemical programme
References

Direct answer

Produced water chemical optimisation means achieving stable separation and outlet quality at the lowest defensible chemical cost without transferring problems to hydrocyclones, flotation, filters, reinjection wells or discharge. It is not a simple dose-reduction exercise. The programme must account for crude and water chemistry, droplet size, solids, shear, residence time, injection location and the way different products interact.

The safest method is to establish a reliable baseline, define measurable objectives, test one controlled change at a time and track both treatment quality and secondary effects. A lower dose is only an improvement if performance, operability and asset integrity remain acceptable.

Map every chemical to its process purpose

Create a chemical injection map from the wells or inlet separators through final disposal. For every demulsifier, reverse demulsifier, corrosion inhibitor, scale inhibitor, biocide, oxygen scavenger, antifoam and flotation aid, record product, concentration, injection point, normal dose, pump capacity and intended mechanism.

This exercise often reveals duplicate duties, poorly located injection points and products retained after process conditions changed. It also identifies chemicals added upstream for another purpose that reach the water system and alter emulsion stability or surface chemistry.

Understand interactions across the treatment train

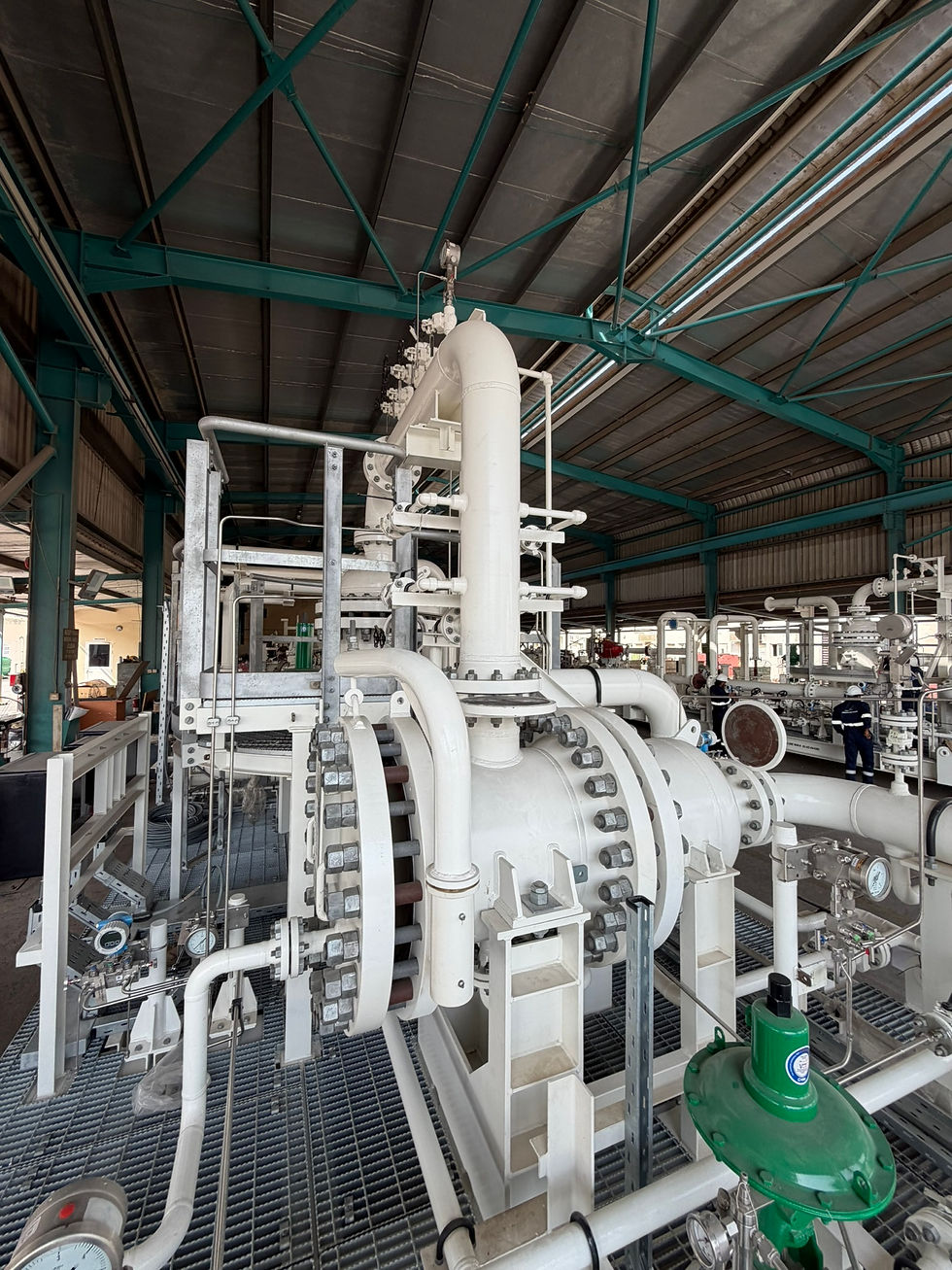

Hydrocyclones rely on a favourable droplet-size distribution and density difference. Excessive shear or an incompatible chemical can stabilise fine droplets that are difficult to separate. A product that improves primary separation may still affect the downstream hydrocyclone if it changes the interfacial behaviour of residual oil.

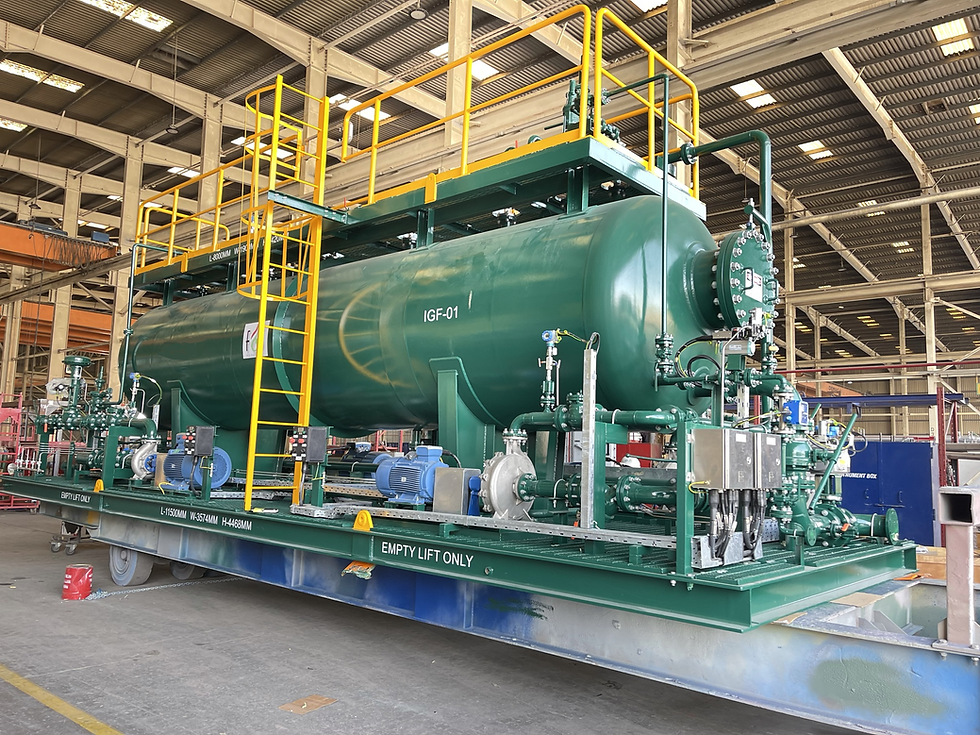

Gas flotation depends on attachment between gas bubbles and oil or solids. Flotation aids may improve capture, but overdosing can cause persistent foam, sludge or downstream filter loading. Scale and corrosion chemicals can also interact with coagulants, dissolved metals and suspended solids.

Filters reveal transferred problems. Short run length, rising differential pressure or poor backwash may indicate an upstream chemical change rather than a filter defect. Optimisation therefore has to review the whole treatment train, not each vendor’s product in isolation.

Build a trustworthy performance baseline

Collect time-aligned data at stable operation before changing the programme. Include water flow, temperature, pressure, chemical dose, upstream and downstream oil-in-water, solids, hydrocyclone pressure relationship, flotation gas or recirculation rate, filter differential pressure and disposal performance.

Verify pump calibration and actual chemical concentration. A controller setpoint does not prove delivered dose if the pump is worn, the suction condition is poor or the product has been diluted incorrectly. Check sample handling and analytical consistency so an apparent improvement is not a measurement artefact.

Use laboratory and controlled field testing

Bottle tests, jar tests or bench flotation can compare products and narrow a dose window using representative water. Preserve temperature and minimise delay where possible because produced water can change rapidly after sampling. Laboratory tests are screening tools; they do not reproduce every hydraulic and residence-time effect in the plant.

Field trials should have a written plan, acceptance criteria, safe boundaries and a route back to the previous settings. Change one variable at a time and allow the process enough time to reach a new condition. Record upstream production changes that could otherwise be mistaken for a chemical response.

Correct dosing hardware and injection practice

A suitable product will underperform if it is injected at the wrong location or delivered inconsistently. Confirm required mixing energy and contact time, but avoid injection immediately before high-shear equipment when droplet coalescence is the objective.

Inspect storage temperature, compatibility, agitation, suction design, calibration columns, pulsation, non-return valves and quills. Use duty/standby arrangements where interruption creates a rapid compliance risk. Alarm on verified flow or pressure where the criticality justifies it, rather than relying only on pump-running status.

Optimise against technical and commercial KPIs

Outlet oil-in-water and variability, not only the average.
Chemical consumption per unit of treated water.
Hydrocyclone reject loss and stable operating pressure.
Flotation foam, sludge production and gas demand.
Filter run length, backwash frequency and waste volume.
Corrosion, scaling and reinjection indicators.
Off-spec hours, interventions and maintenance labour.

Evaluate cost across these measures. A small reduction in chemical spend is not valuable if it increases oil loss, waste handling or unplanned work.

Create a sustainable chemical programme

Document the selected products, operating window, dose limits, sampling plan, alarm response and responsibilities. Review the programme when new wells, workovers, throughput changes or treatment modifications alter the feed. Maintain traceability between delivered batches and observed performance.

Add a chemical injection map, representative test results and a KPI table before publication. Crescent Engineering can review treatment data and chemical interactions across hydrocyclones, flotation and filtration. Share current products, dose history, water analysis and performance trends to review your chemical programme.
